The Mitsubishi Magna was made by Mitsubishi Australia and was a widened Galant platform. It was powered with the 2.6 Astron 4 cylinder engine and later was available with the 3.0 V6 in certain models. The 2.6 engines were made in Australia. The 3.0 V6 was imported from Japan.

TP Magna Distributor (2.6 litre Astron)

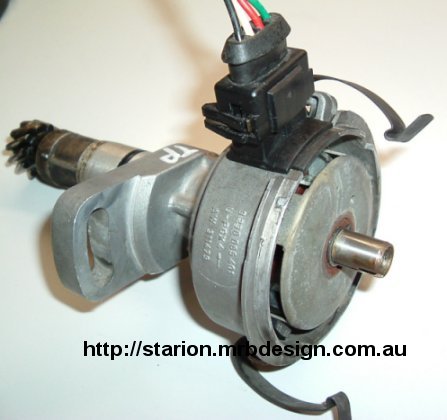

Magna distributor 4 pin (AMP junior timer) connector showing factory wire colours.

PIN4 = BLACK = GND

PIN3 = WHITE = TRIGGER (outer sensor) 5V pullup resistor in ECU (ECU pin 16)

PIN2 = RED = CYL1 (inner sensor) 5V pullup resistor in ECU (ECU pin 15)

PIN1 = GREEN = +12V supply (ECU pin1) (will run on +5V as well)

Note: this connector uses normal junior timer terminals (same as injector plugs)

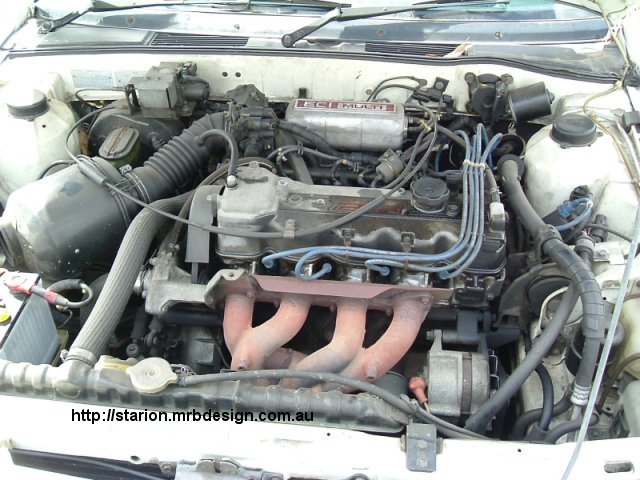

Magna Astron II engine shown below

MAGNA
The Mitsubishi Magna was made by Mitsubishi Australia and was a widened Galant platform. It was powered with the 2.6 Astron 4 cylinder engine and later was available with the 3.0 V6 in certain models. The 2.6 engines were made in Australia. The 3.0 V6 was imported from Japan.
	TP Magna Distributor (2.6 litre Astron)
	Magna distributor 4 pin (AMP junior timer) connector showing factory wire colours. PIN4 = BLACK = GND PIN3 = WHITE = TRIGGER (outer sensor) 5V pullup resistor in ECU (ECU pin 16) PIN2 = RED = CYL1 (inner sensor) 5V pullup resistor in ECU (ECU pin 15) PIN1 = GREEN = +12V supply (ECU pin1) (will run on +5V as well) Note: this connector uses normal junior timer terminals (same as injector plugs)

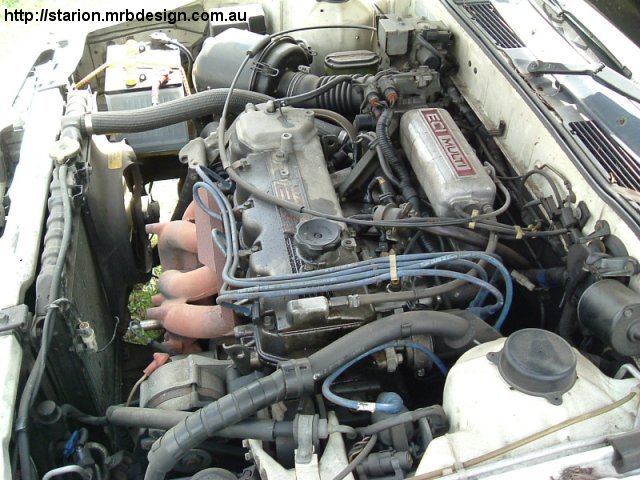

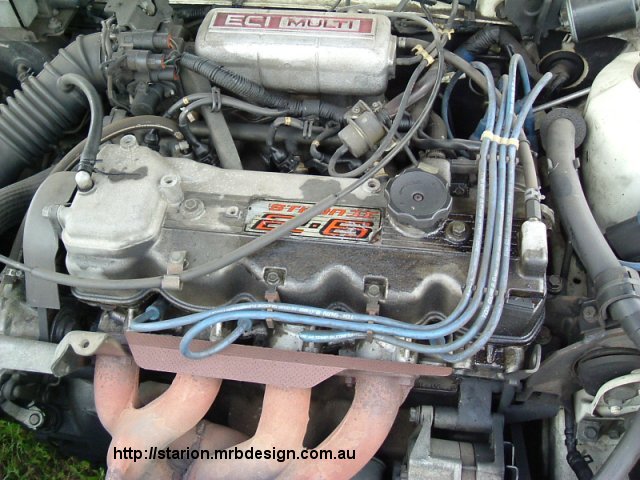

Magna Astron II engine shown below

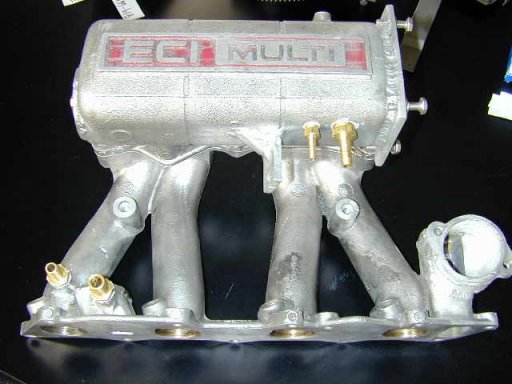

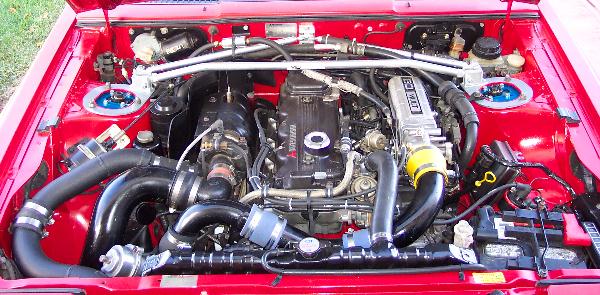

Manifold (modified) off this engine used to convert 2.6 Starion to MPI
